Shandong Weiterui Industrial Technology Co., Ltd. yog ib qho ntawm cov tuam txhab ua lag luam thiab cov chaw muag khoom ntawm precision tivthaiv induction rhaub rau cov neeg kho tshuab sib dhos hauv Suav teb. Txais tos mus yuav cov khoom zoo siab bearing heaters ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Thov pub dawb kom txaus siab rau peb tus nqi luv nqi thiab kev pabcuam zoo.

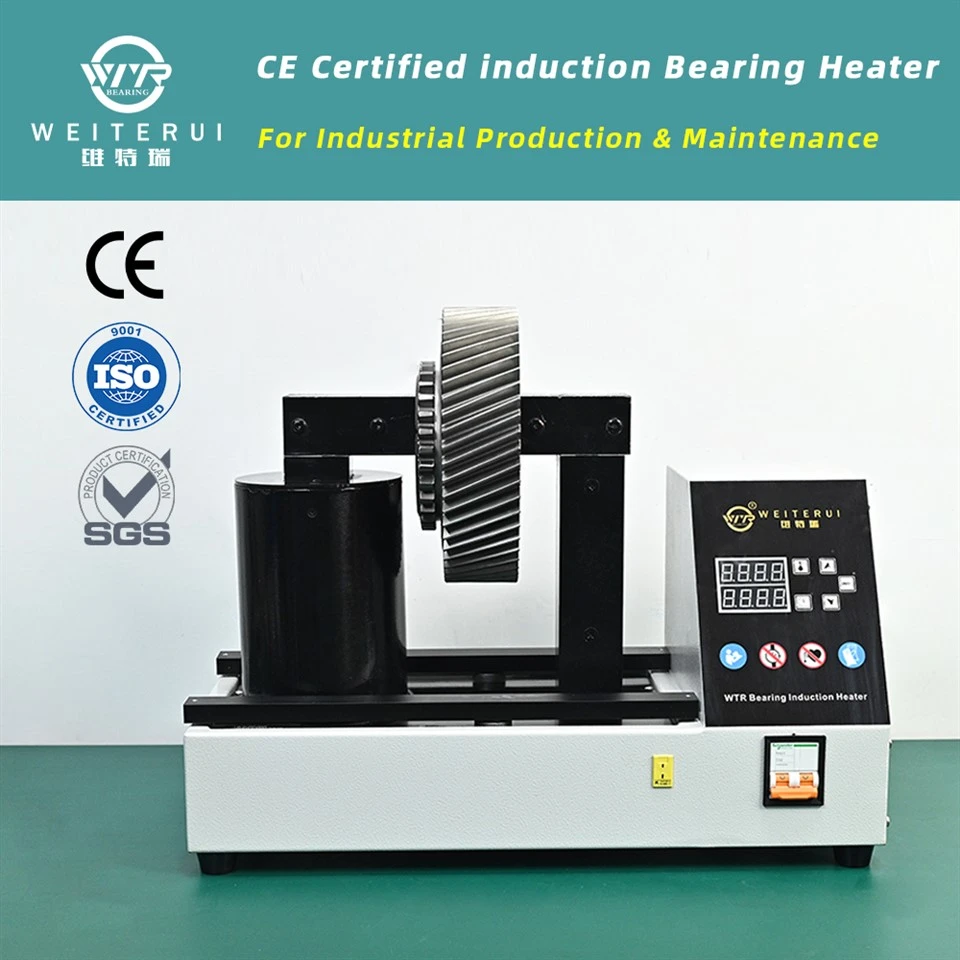

Precision Component Induction rhaub rau Mechanical Assembly
Component Protection Technology:
SIH5 series yog tsim los nrog cov tub rog- qib siab- silicon steel los xij (0.35mm thickness), uas txo qis zog poob thiab tsom cov cua sov raws nraim qhov nws xav tau, tiv thaiv qhov tawv tawv ntawm lub workpiece.
Kev tsim kho ruaj khov:
Nta 100% ntshiab tooj liab induction coils thiab Qib F epoxy resin rwb thaiv tsev. Chav tsev yog tsim los tiv thaiv hnyav kev lag luam kub xws li -10℃mus rau 400 degree, ua kom lub neej ntev kev pab cuam.
Ergonomic Tsim:
Nws cov qauv compact thiab nqa tau yooj yim tso cai rau nws yooj yim rau hauv cov kab sib dhos uas twb muaj lawm lossis txav mus los ntawm cov chaw ua haujlwm, txo kev siv zog rau cov neeg ua haujlwm.
Suab nrov & Radiation Control:
Los ntawm kev siv tshuab tshwj xeeb, cov suab nrov ua haujlwm tau khaws cia qis dua 75 dB, thiab cov hluav taws xob hluav taws xob tsawg tsawg, ua rau nws muaj kev nyab xeeb rau kev siv tsis tu ncua hauv cov chaw ua haujlwm tsis khoom.
Muaj ntawv pov thawj:
Tag nrho cov ntawv pov thawj los ntawm ISO9001, CE, EMC, thiab FCC, muab kev lees paub zoo thoob ntiaj teb rau kev tsim khoom siab - kawg.
Technical Parameters
| Yam khoom | Specification |
| Hwj chim | 5 kWv |
| Qhov hluav taws xob | 220 V |
| Max. Workpiece Nyhav | 6 5kg |
| Min. ID (Vertical) | 20 mm |
| Max. OD (Vertical) | 400 hli |
| Max. Qhov siab (Vertical) | 140 hli |
| Min. ID (kab rov tav) | 150 hli |
| Max. OD (kab rov tav) | 450 hli |
| Max. Qhov siab (Horizontal) | 160 hli |
| Lub sij hawm cua sov | 0-9999 s |
| Cua sov hnyav | Kwv yees li . 30 kg |
| Yoke Sizes suav nrog | 14x14x295, 20x20x295, 28x28x295, 45x45x295 mm |
FAQ
Q: Lub tshuab cua sov no puas tuaj yeem siv rau qhov tsis yog -cov kabmob xws li bushings lossis gears?
A: Yog lawm. Nws muaj txiaj ntsig zoo rau txhua lub nplhaib- zoo li cov hlau ua haujlwm, suav nrog cov iav, bushings, couplings, thiab pulleys, tsuav yog lawv poob hauv qhov loj thiab qhov hnyav.
Q: Cov cuab yeej siv tau yooj yim los tswj?
A: SIH5 yog tsim los rau kev saib xyuas qis. Ib cag los ntawm kev ua kom cov yoke sib cuag qhov chaw huv si thiab maj mam oiled los tiv thaiv xeb, cov khoom - xeev cov khoom siv hluav taws xob thiab siab - cov coils zoo yuav tsum tau muaj kev cuam tshuam me ntsis.
